REP Series - Redutores planetários de precisão.


Stacks Image 124

T2N = 26 - 570 Nm
i = 3 - 343

Our gearboxes are manufactured for prevailing utilization in the following applications:

• Machine tools
• Machines for woodworking
• Transfer machines
• Printing machines
• Automatic machines for packaging
• Automation
• Mechanical hands
• Silk-screen process machines
• Linear guides

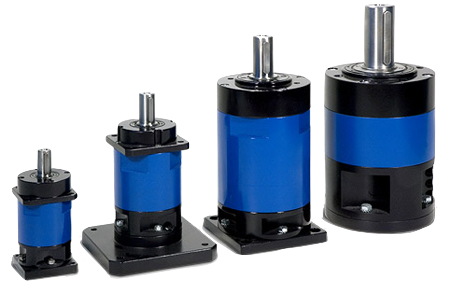

The REP series is available in 4 sizes (075, 100, 125 and 150), with 1, 2 or 3 reduction stages, with two or three types of output shaft (AU...) and two types of output flange (FLT and FLQ).

Housing: made of special nitrided steel to assure strength, high reliability and long life.

Flanges: input and output flanges made of aluminium and available in several versions.

Shafts: made of hardened and tempered alloy steel.

Gears: made of casehardened and tempered alloy steel, with ground toothing.

Bearings: high quality and suitably sized to assure long life and noiseless working.
